Bucket Tower | Marble Machine STL

€12,95

Files were majorly overhauled on 30th of December 2021 and are now better than ever! Happy 3D printing!

You are buying digital STL files available for download immediately after the purchase. You will need a 3D printer to print with a minimum print size of 180x180x180 mm. Yes, it can be printed on Prusa Mini by disabling the skirt.
G-codes for Prusa printers are also provided in the files!

The price is for the two base machines, you also need to add a minimum of 2 modules to the cart, unless you already have them. All of the modules are interchangeable between the machines. You can also get a free marble machine module here.

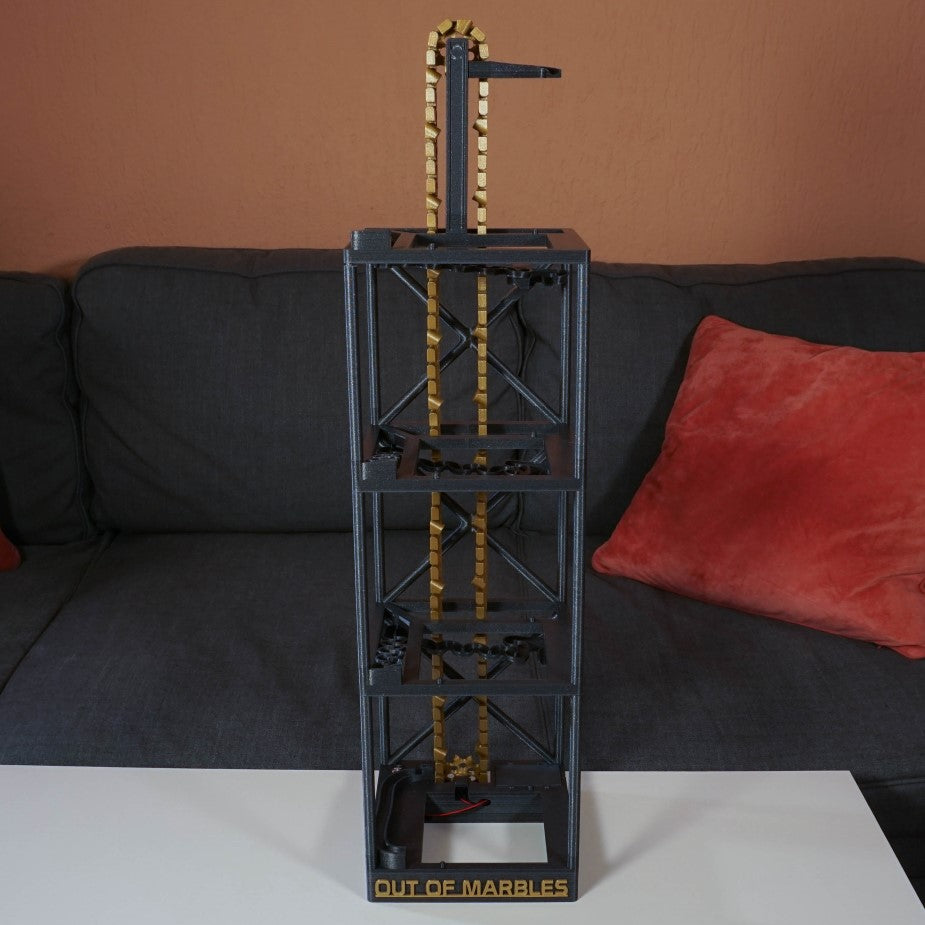

You are getting two versions. The first is motorized and the second is hand-cranked. You can print just one of them or both if you would like. For the motorized version, you will need a hardware kit and for the hand-cranked version, you will only need the marbles. The kids absolutely love the hand-cranked version, since it is more intractable!

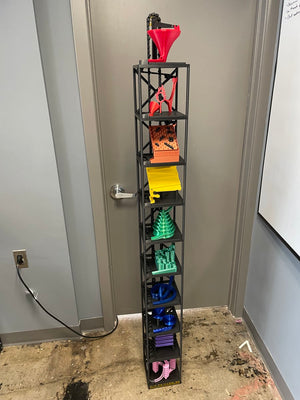

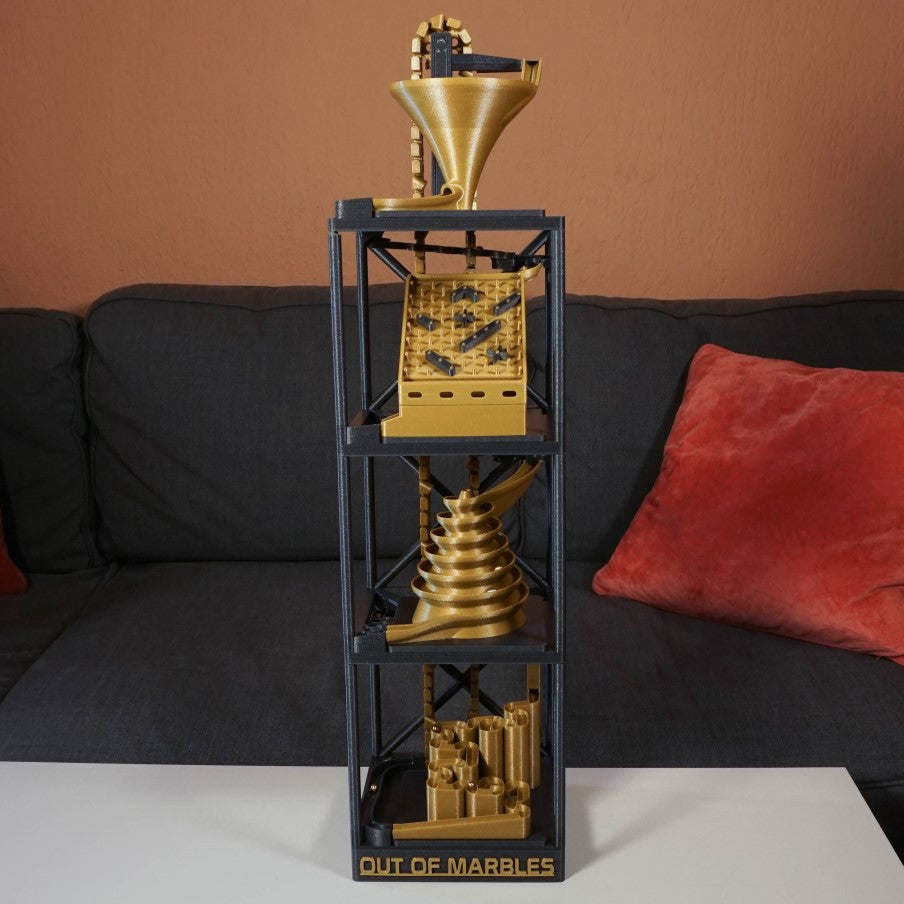

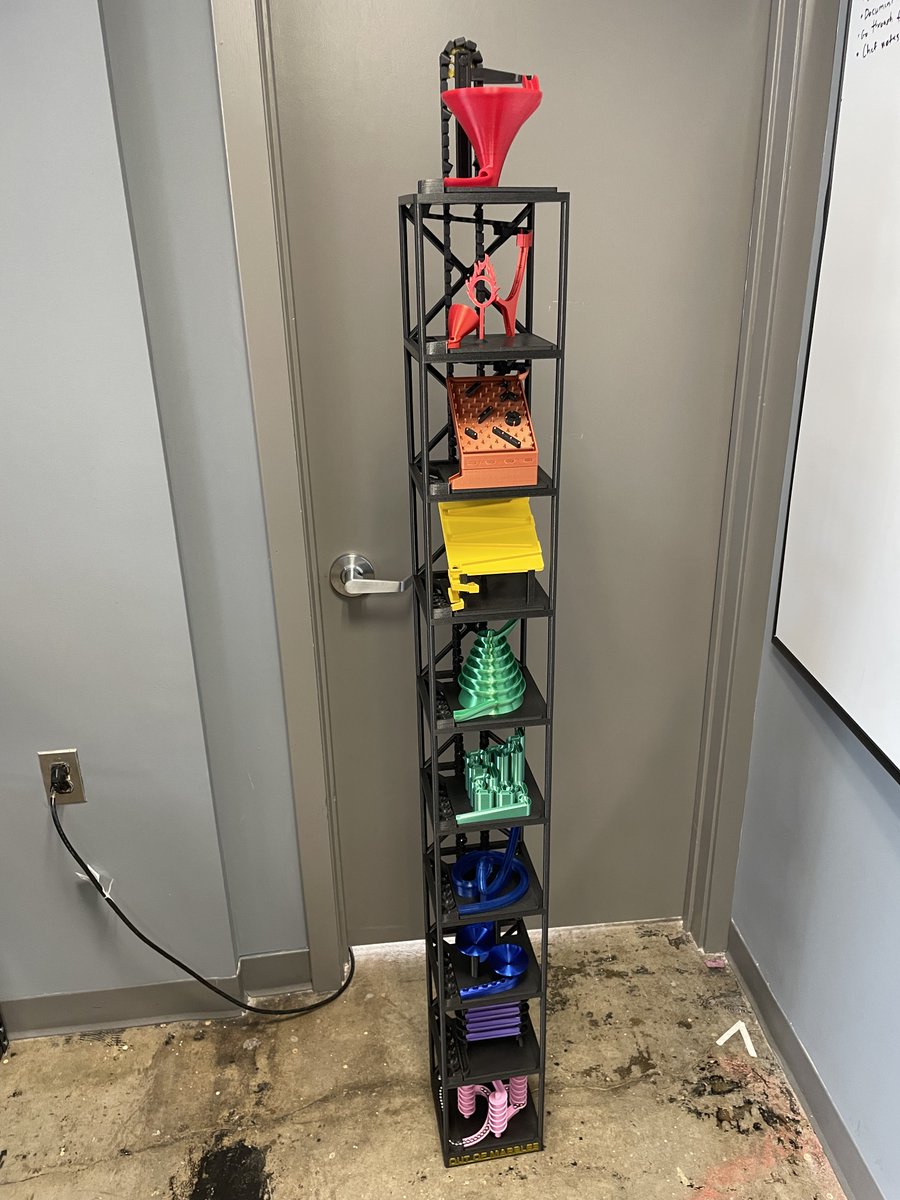

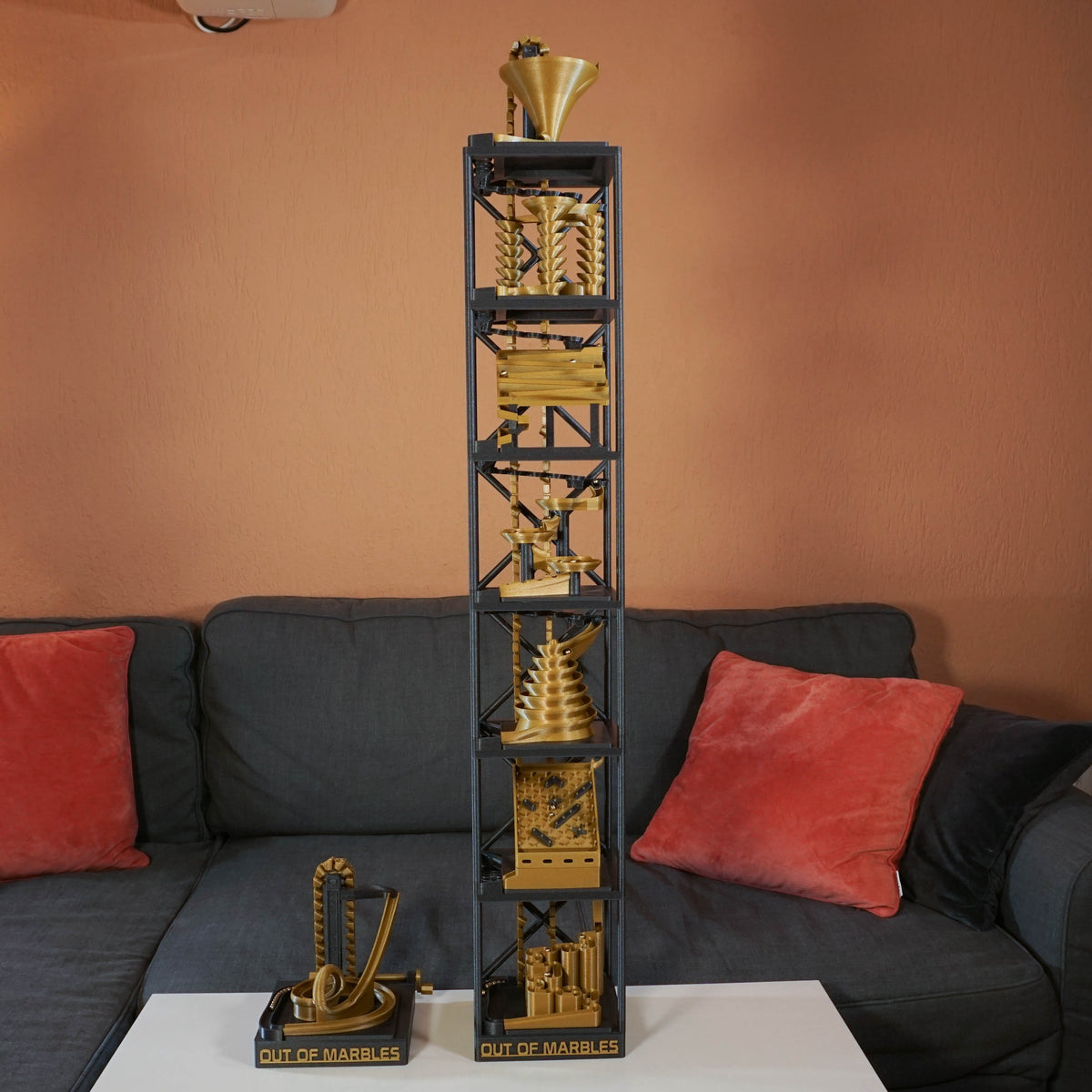

This Marble Machine is unique in the sense that you can stack many levels on top of each other. Go as high or as low as you want!

You are NOT allowed to resell this in digital or 3D printed versions.

Specifications

Length	180mm \| 7 Inches
Width	180mm \| 7 Inches
Height	107cm at 6 Levels stacked \| 42 Inches
Marble Size	7.14mm\| 9/32”
Motor	N20 DC 3V, 15 RPM
Printer Bed Dimensions	180x180x180 mm

Here you can find the amount in grams of primary color, accent color and the height of the tower. (weight listed is without modules and by using 10% infill)
The base is 195 mm (7.67 inch) tall. Each middle level adds 172 mm (6.77 inch) and the top is 162 mm (6.37 inch) tall.

All values are approximate.

Level	Primary color	Accent color	Height
1	195g	52g	195 mm \| 7.6 inch
2	385g	83g	357 mm \| 14 inch
3	575g	114g	529 mm \| 20.8 inch
4	765g	145g	701 mm \| 27.6 inch
5	955g	176g	873 mm \| 34.3 inch
6	1145g	207g	1045 mm \| 41.1 inch
7	1335g	238g	1217 mm \| 47.9 inch

Hardware

Please see our help topic for the list of hardware needed.

Assembly

Assembly Instructions

Collections: Bases STL

Printed on: Creality Ender 6

Filaments used: eSun PLA+

Not made it yet but.......

I have made the two wheeler which works perfectly. Obviously there are bits of post-printing work to be done but well worth the effort. I did have an issue with the tipper which I printed as instructed with 100% infill. The weight of the 4 marbles was not sufficient to tip and I had to drill out the tipper counter weight.

Overall, I am very impressed with the two wheeler and am now starting to print the bucket tower.

The idea of being able to change the modules is very cleaver and I look forward to seeing different modules becoming available.

I believe that Luka is promising a "bigger, better and brighter" design and I am looking forward to seeing that

Printed on: Crality Ender-3 S1 Pro

Filaments used: SUNLU PLA (210/65)

Newbie, but impressed...

To be fair, I am new to 3D printing and still in steep learning curve...this product though is good for me to be learning on since it requires a few different approaches to getting good output...most importantly, using the test print for proper hole sizing to mate parts was crucial...the other was employing adaptive layers...I have so far seen a few places where the marbles tend to stick along the path - in one instance I used some silicone lube to help things along, for others, I thin I will need to sand the path a bit...still just getting the modules together to assemble into a tower, so so far have not had to install and adjust chain - will report back on that in a bit...I added some LED lighting to the module that will be on the bottom of the tower and I printed that with clear PLA so hopefully that will look good - would be nice if the posts on one side of the braces were set up as a conduit to carry some lighting wiring up to higher module layers - maybe when I learn more I can implement myself...so far, been a fun, though at times a bit frustrating project!

Printed on: Ender 3 v2

Excellent files

Had alot of fun with these

Printed on: Ender 3

Filaments used: ERYONE SILK PLA

Have you not thought about your professional existence that such a long chain has weight and swings so far? A driver or a chain tensioner would come in handy.

Printed on: EntinaX40

Filaments used: pla

Love playing with these

Yes the marble builda are great but I ran into a HUGE issue,I keep printing and printing to the point I burned up a brand neww printer but I have another new printer and I told the seller to make this printer heavy duty cause its gonna get a good workout printing these marble builds.
I bought the complete collection and am thinking about going horizontal instead of vertical which will require mods but thats the fun part.

1 2 3

Printed on: Bambu X1C

Filaments used: PLA

Perfect

This module works great. Balls roll and roll and roll.

Nice module

I like this one. Sometimes the drop into the half pike just bounces in the middle, instead of rolling in the pike.

Great Product

This printed out fine for me. All parts fit and worked smoothly. I had printed other Modules from Out of Marbles and they also worked great. This was well worth the price and I wanted to pay for the work done on these units. I bought the hardware for Amazon. I did add weight to the left flipper as it would not drop with 100% in fill. It now drops with 3 marbles.

Printed on: Artillery Sidewinder X2

Filaments used: Hatchbox

The two wheeler is a bit more difficult to print and make work than the others I've printed. The two issues I had were: 1. The marbles falling out between the wheels and the guard rail, and 2. the path needs to be perfect for the marbles to roll to where they should. On point 1. I fixed the problem by creating a spacer to go on the pin supporting the wheels. This moved the wheel closer to the guard rail and it solved that problem. On point 2. I was having a bit of a problem getting the long path across the top to print correctly so the marbles would roll to where they were supposed to go. I solved this problem by downloading the PrusaSlicer and using it to slice the files. I'm not sure if that was correct way to fix this, but it worked and now The Two Wheeler works perfectly!

Do not like it

Needlessly high tolerances, parts that do not fit well, price that does not include everything needed. Actually I'm not sure if I will have the nerves to finish it.
